公司收藏品 Historic Classic Car Collected by Us


Historic Vehicles story By Victor Ma T-L

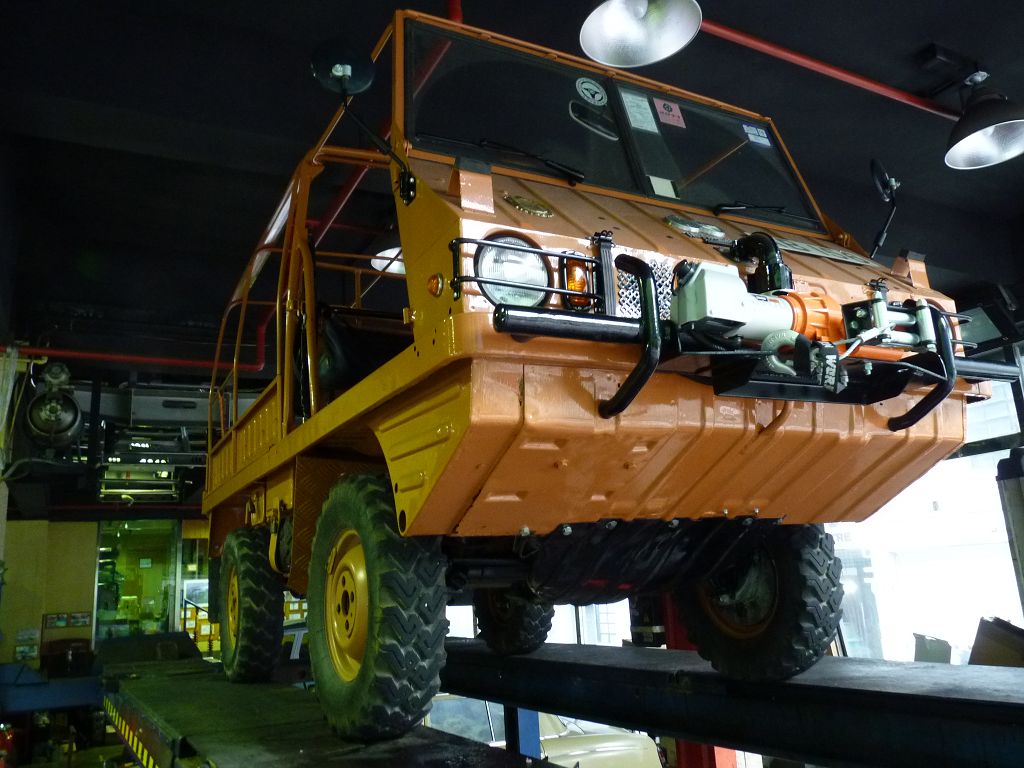

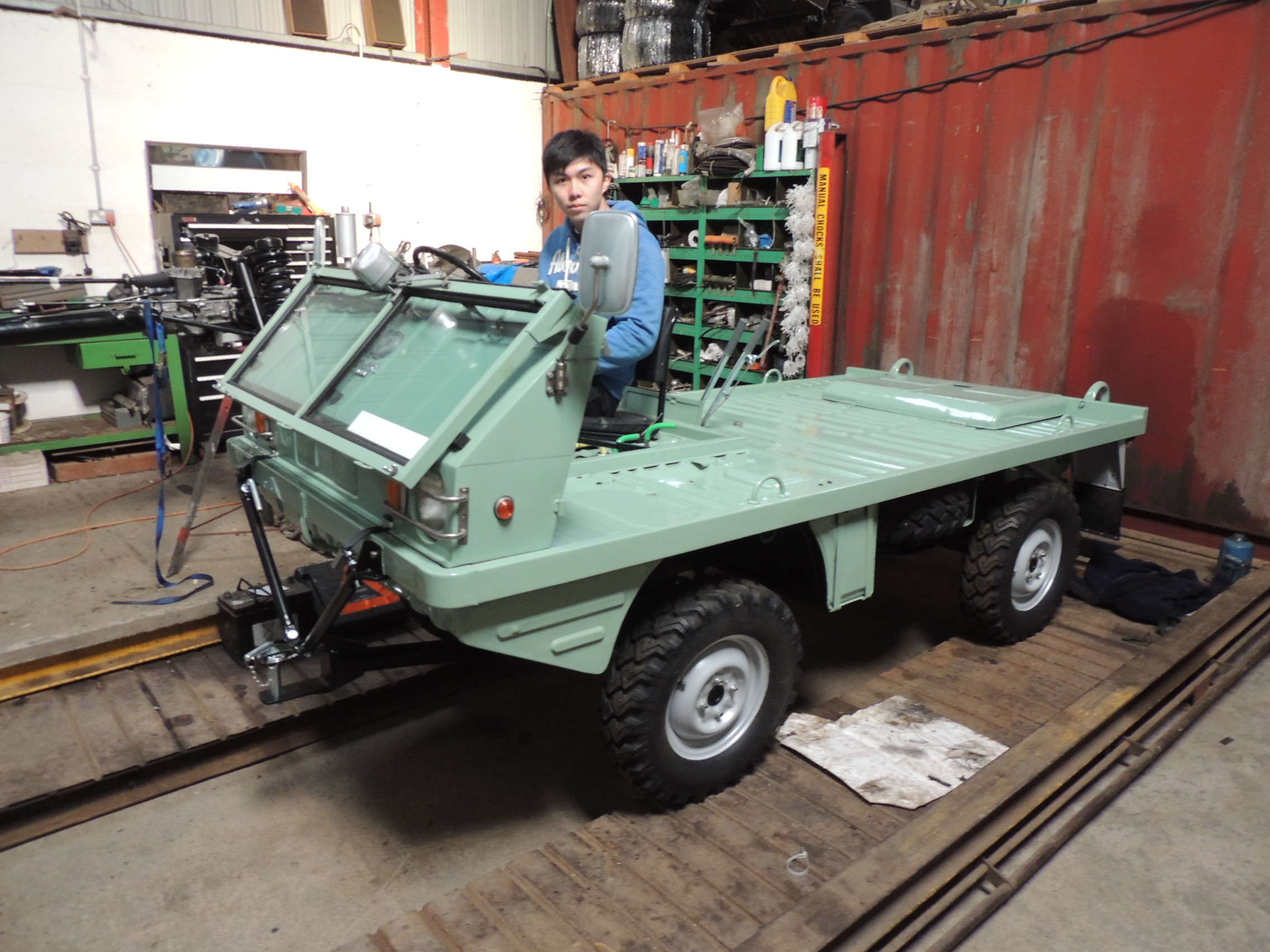

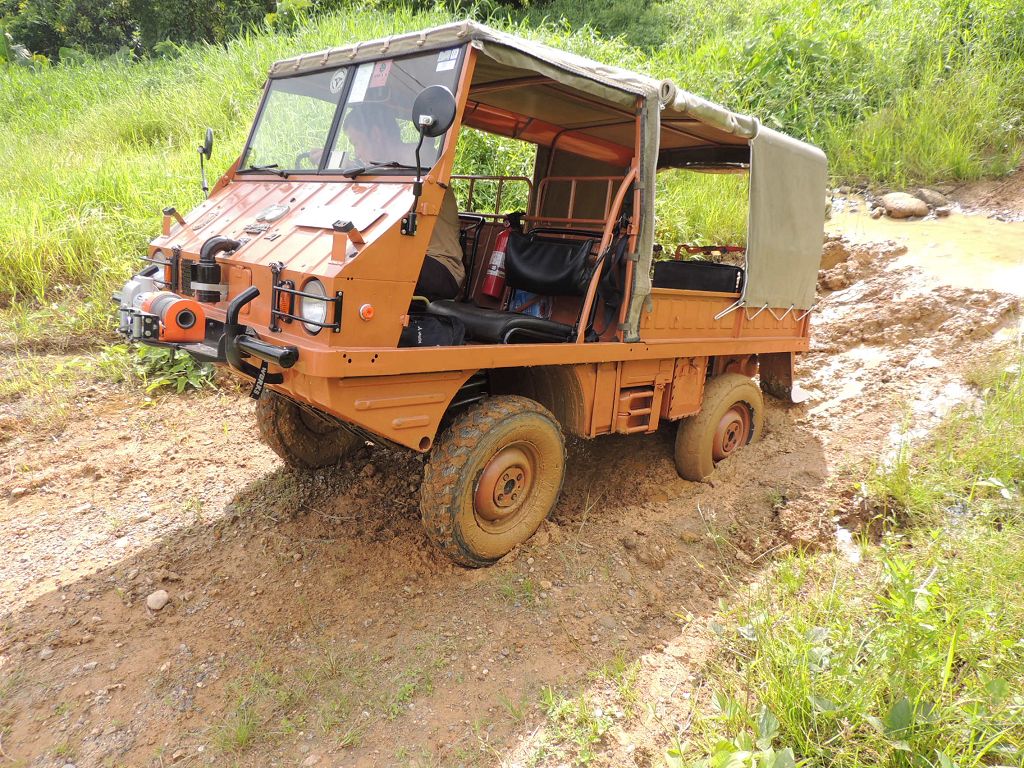

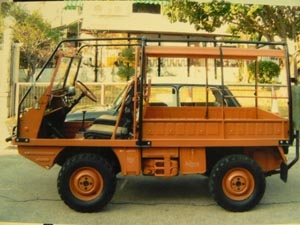

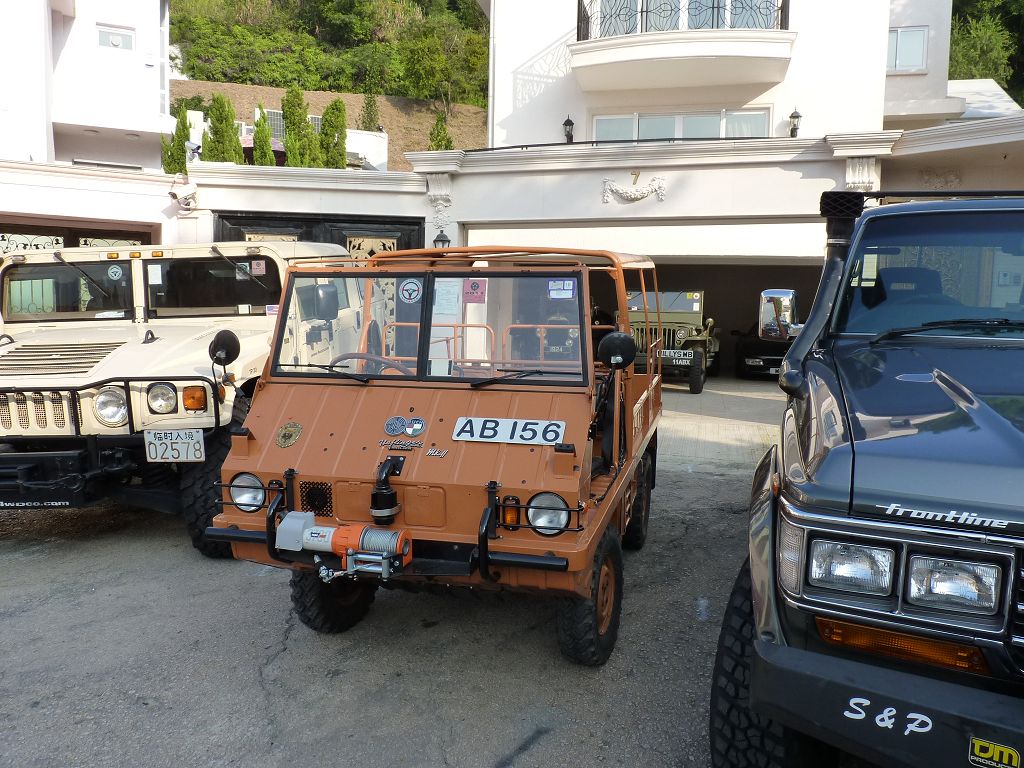

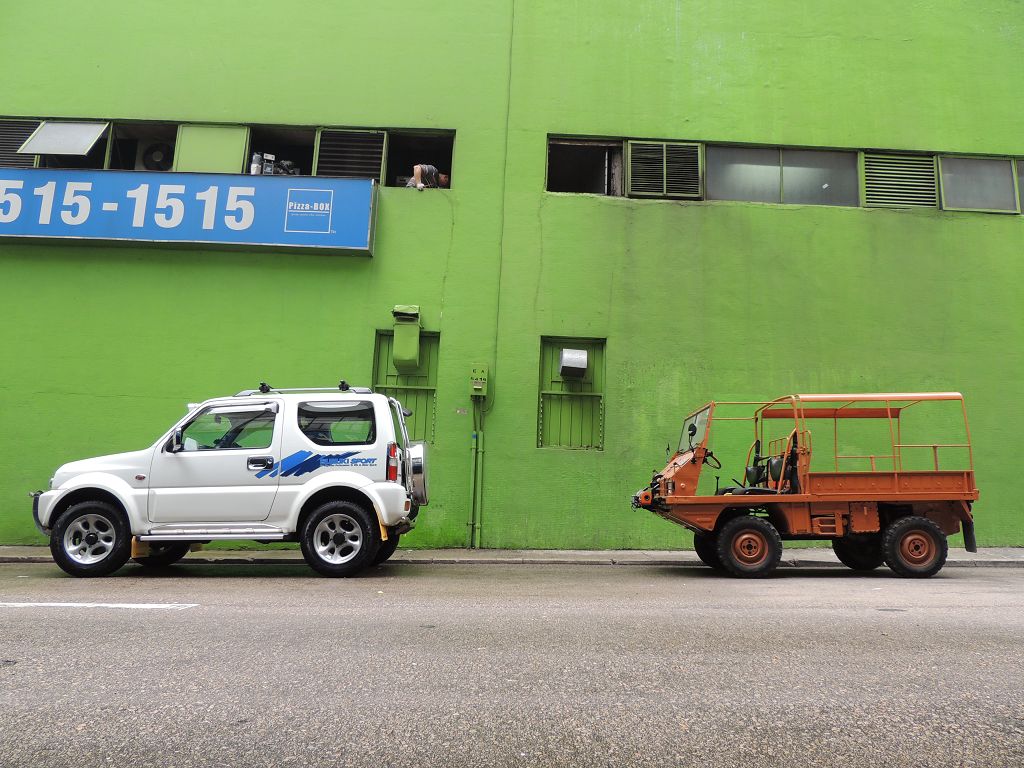

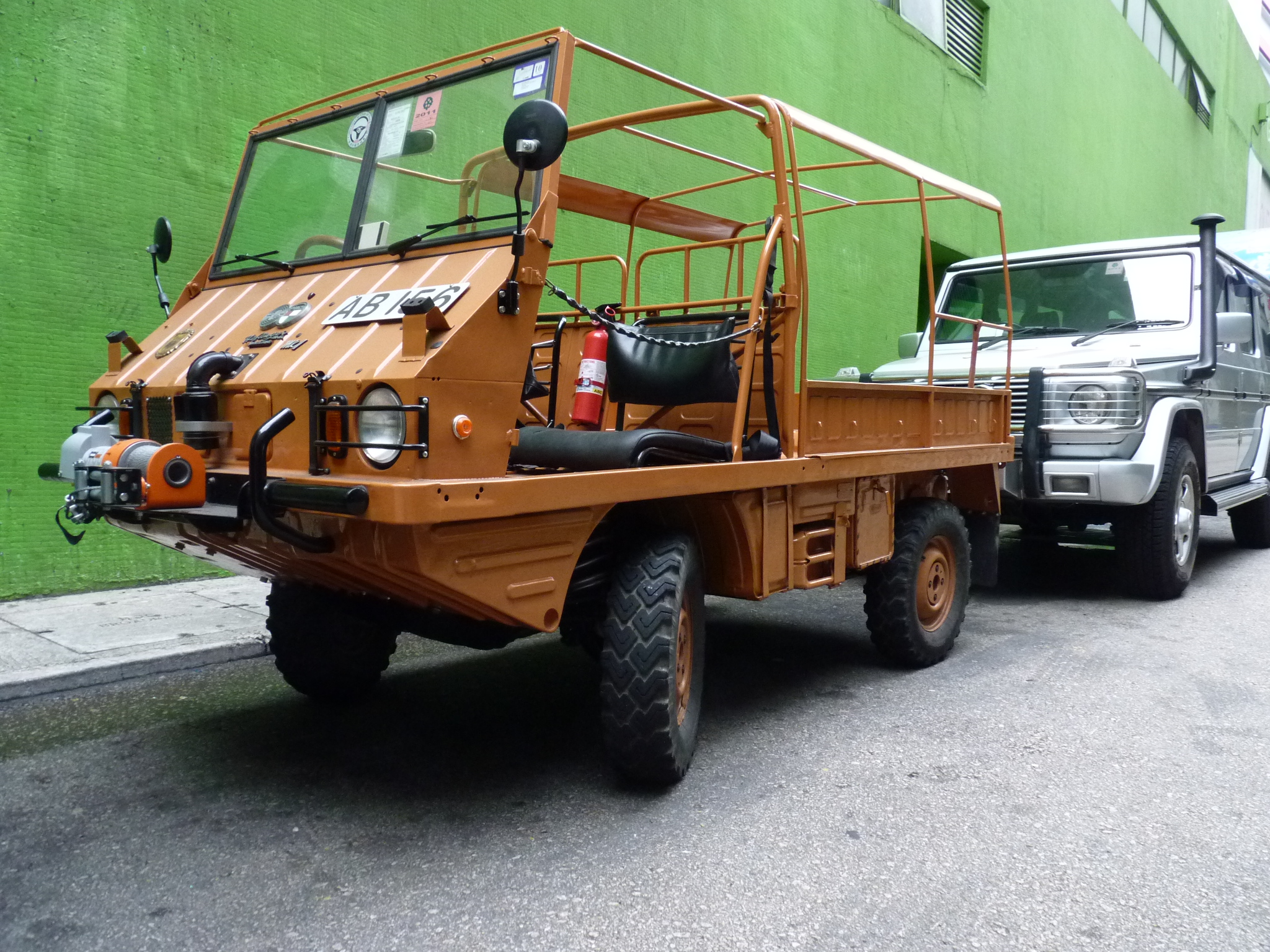

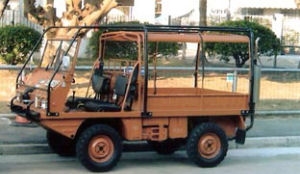

1974 STEYR DAIMLER PUCH Haflinger 700 AP
Model: STEYR Daimler Puch 700AP

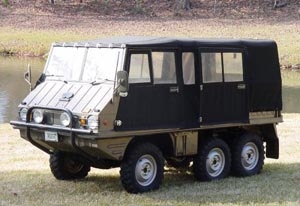

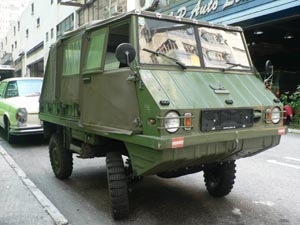

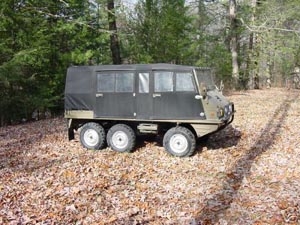

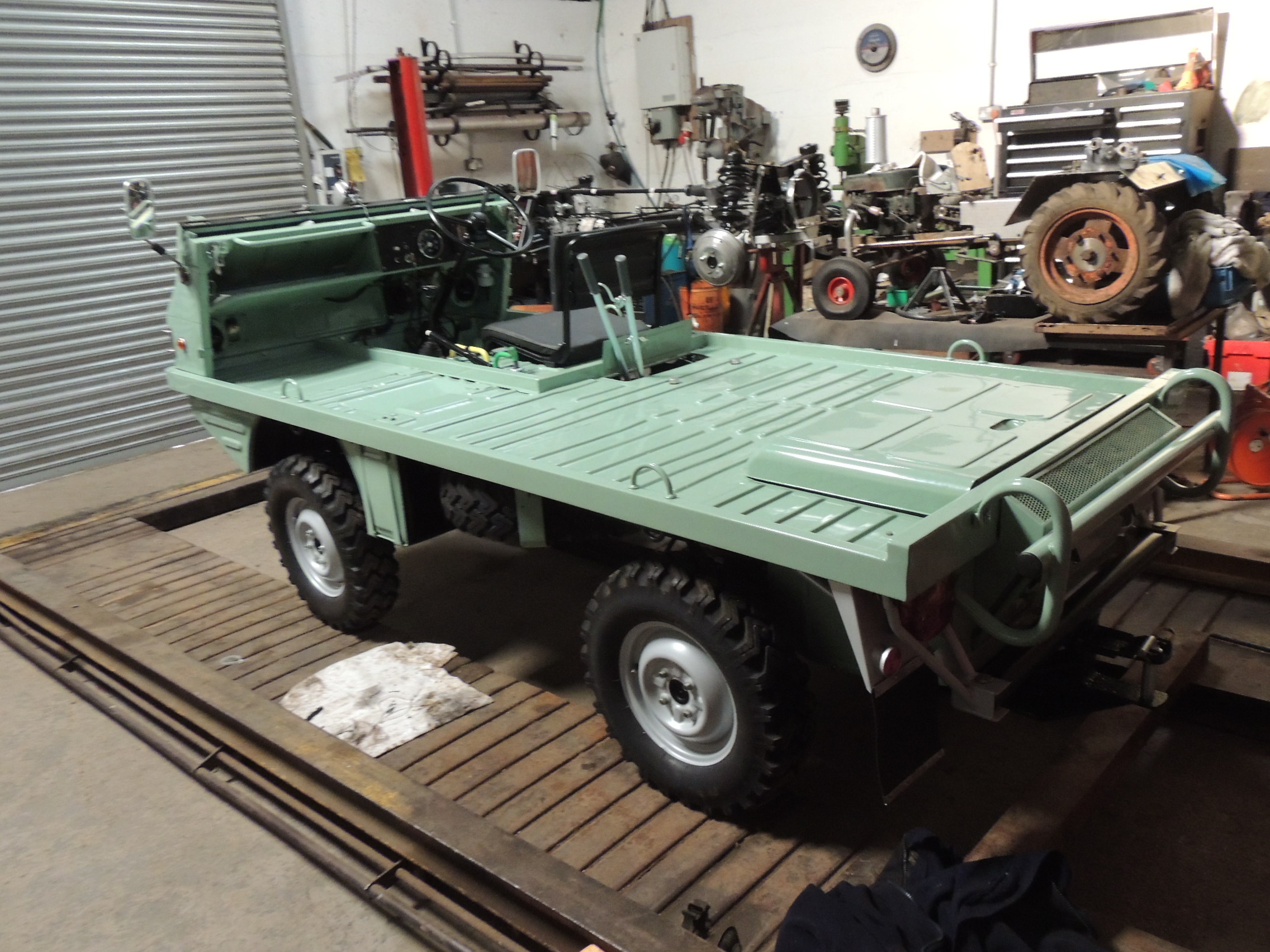

Body Style: Open body or civilian pick-up truck with a laminated cab (16,647 made) ( few of 6x6 prototypes been made.)

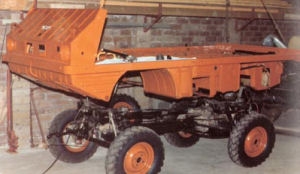

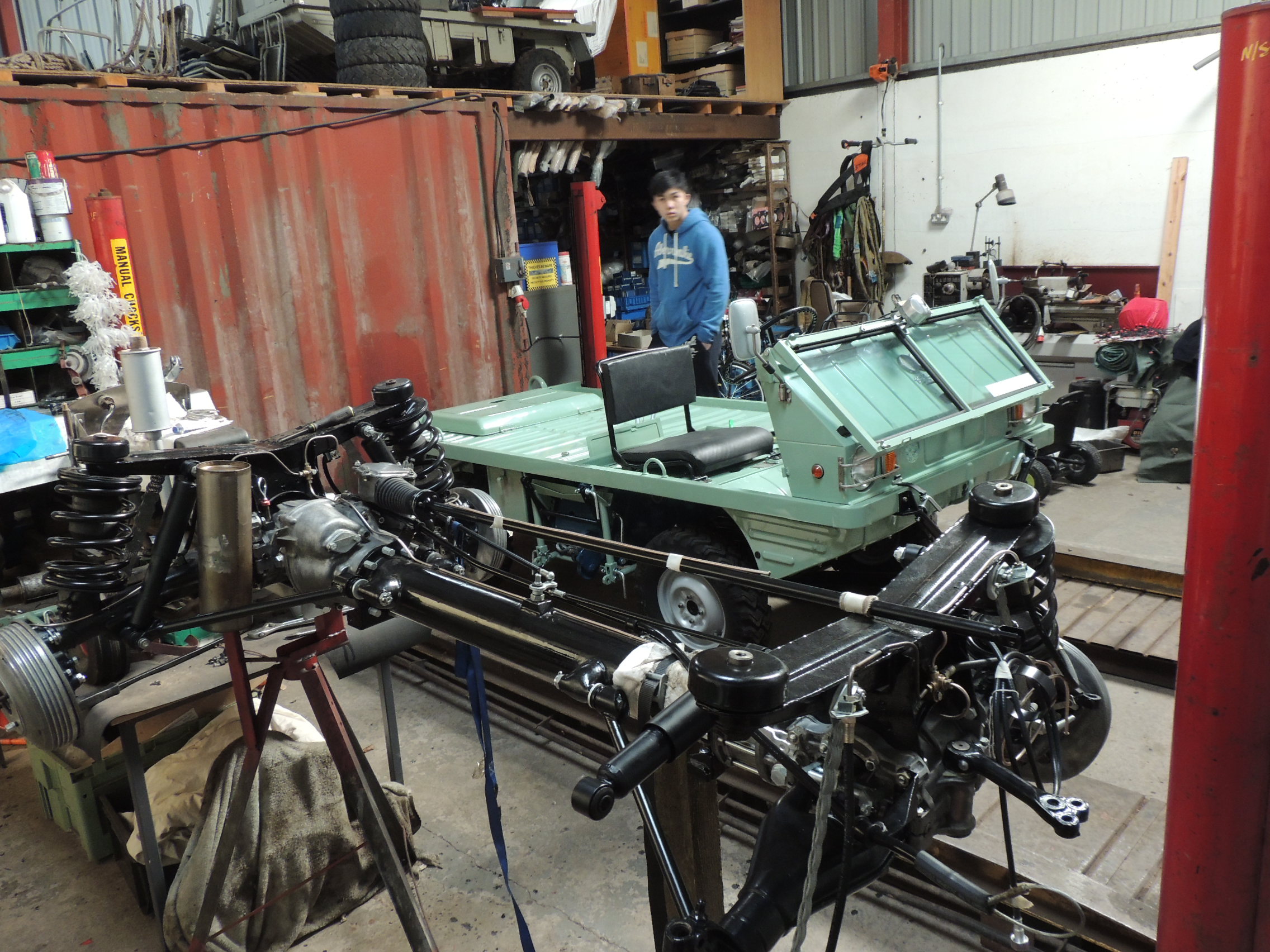

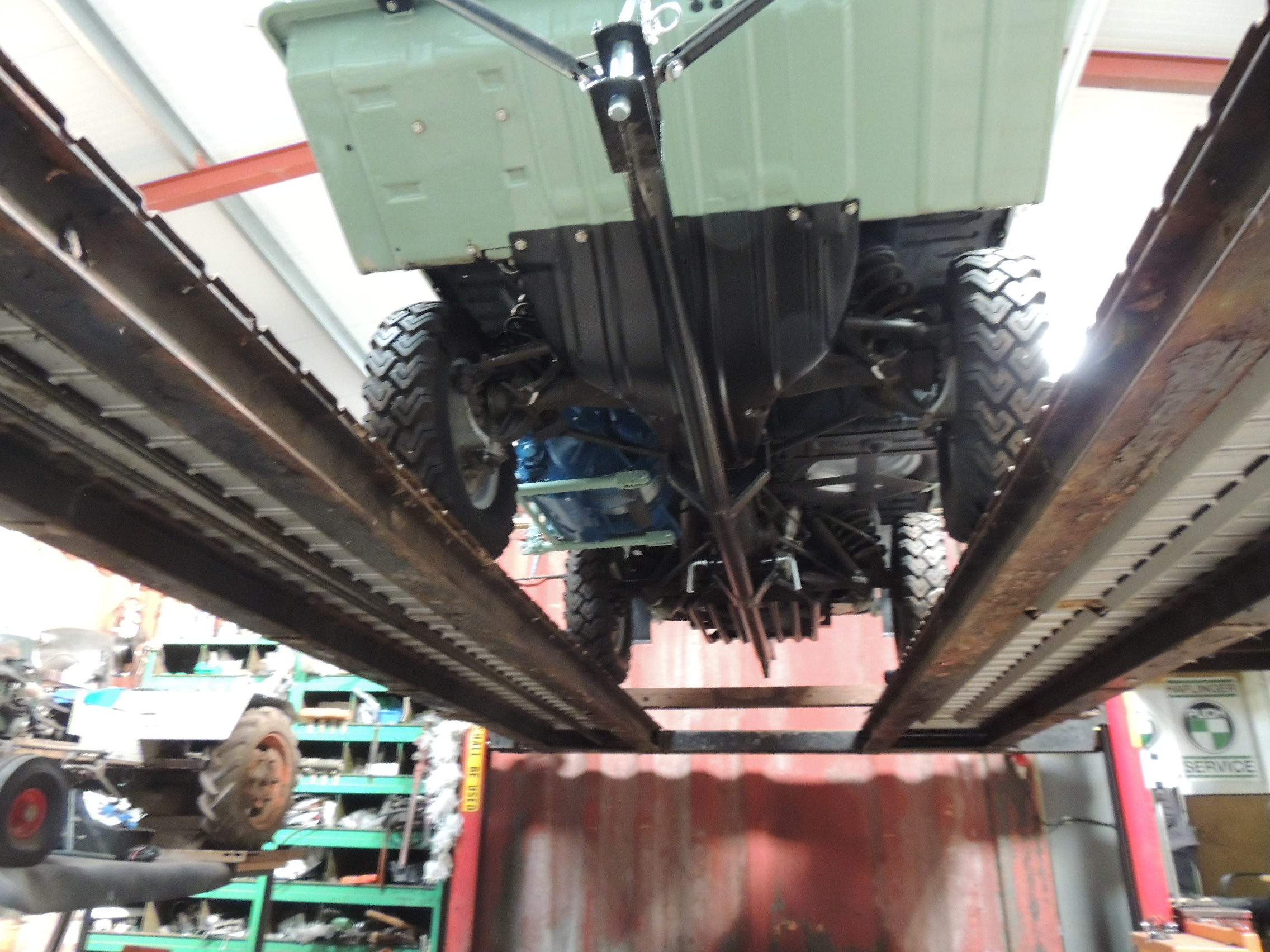

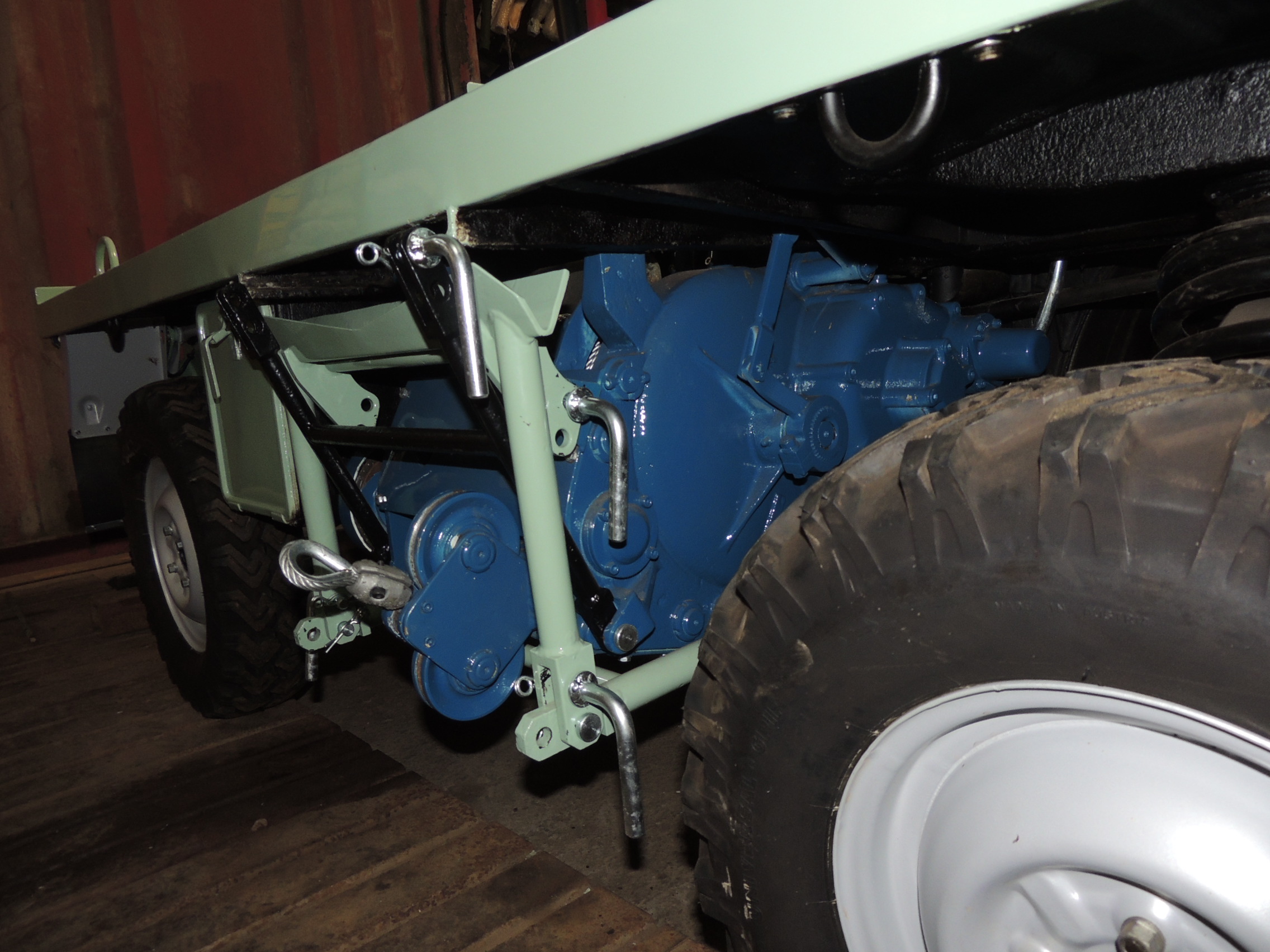

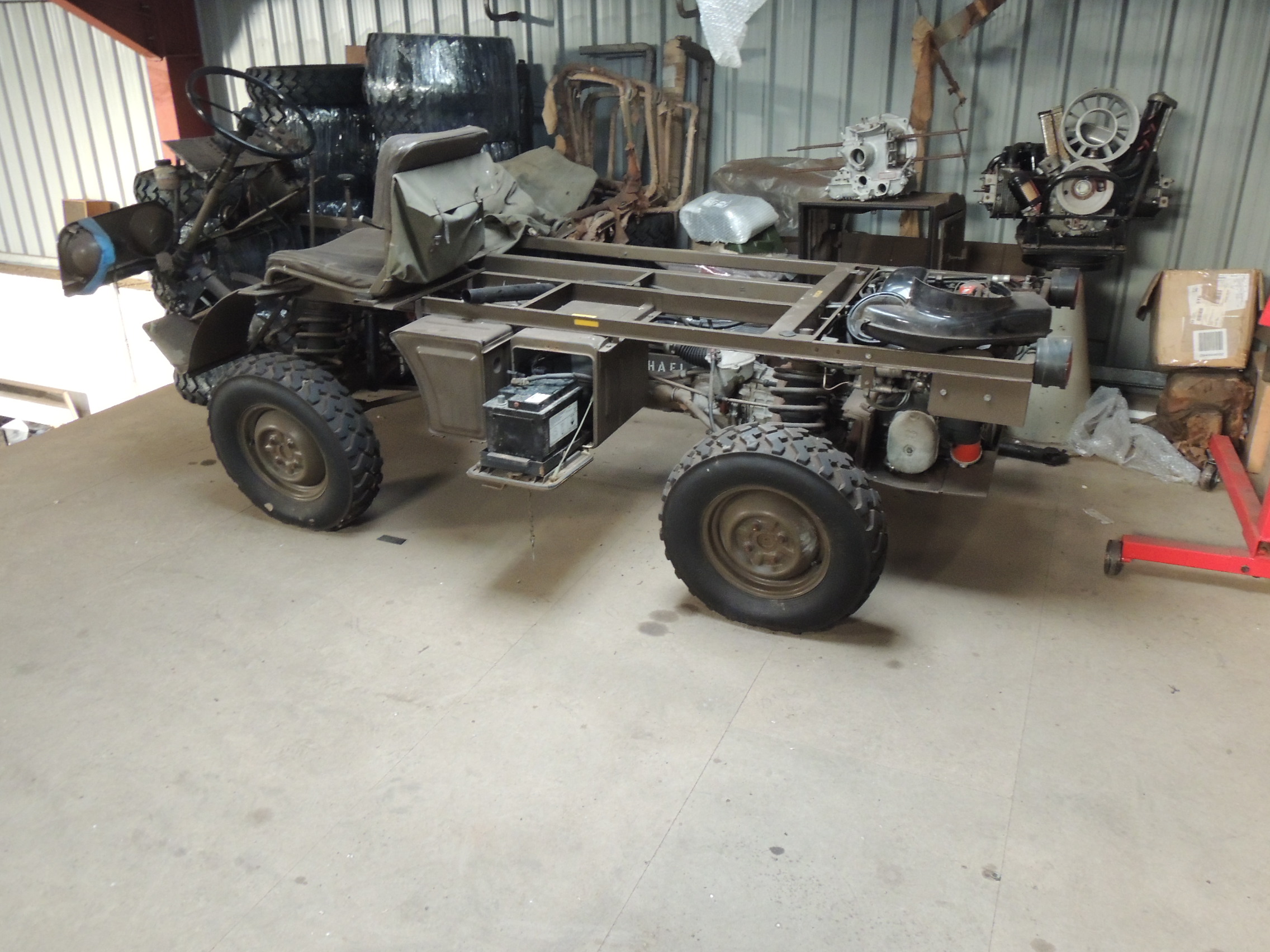

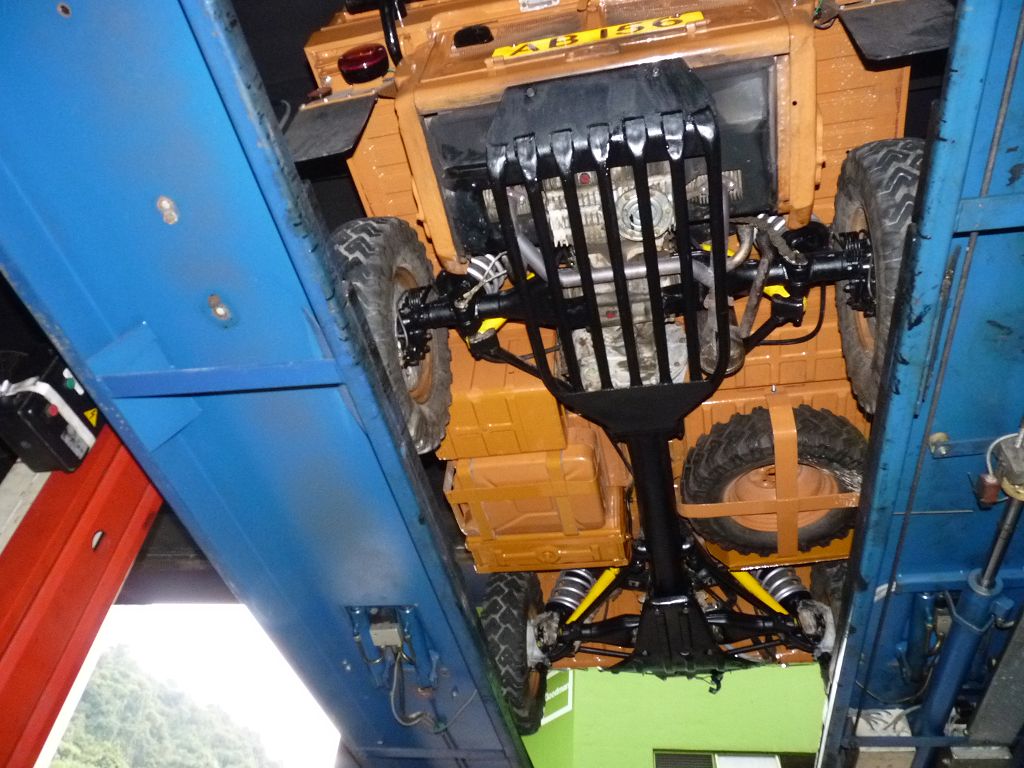

Construction: Tubular back bone chassis. (1959~1974)

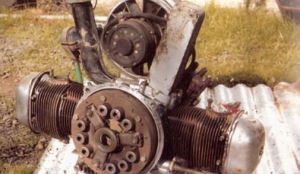

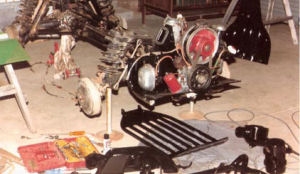

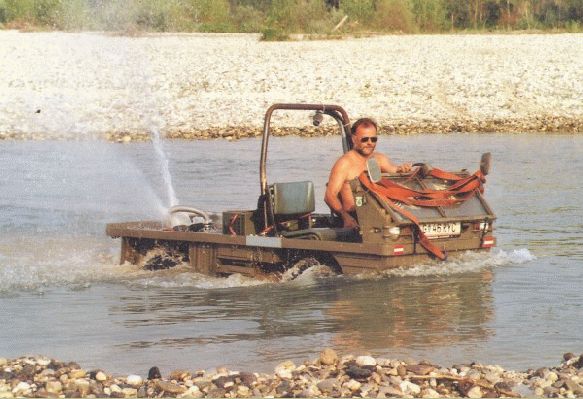

Engine: Horizontally opposed 2 cylinder 650cc water proof engine.
Transmission: 5 speed part time 4 X 4 with front & Rear Diff lock. ( early model got 4 speed gear box.)

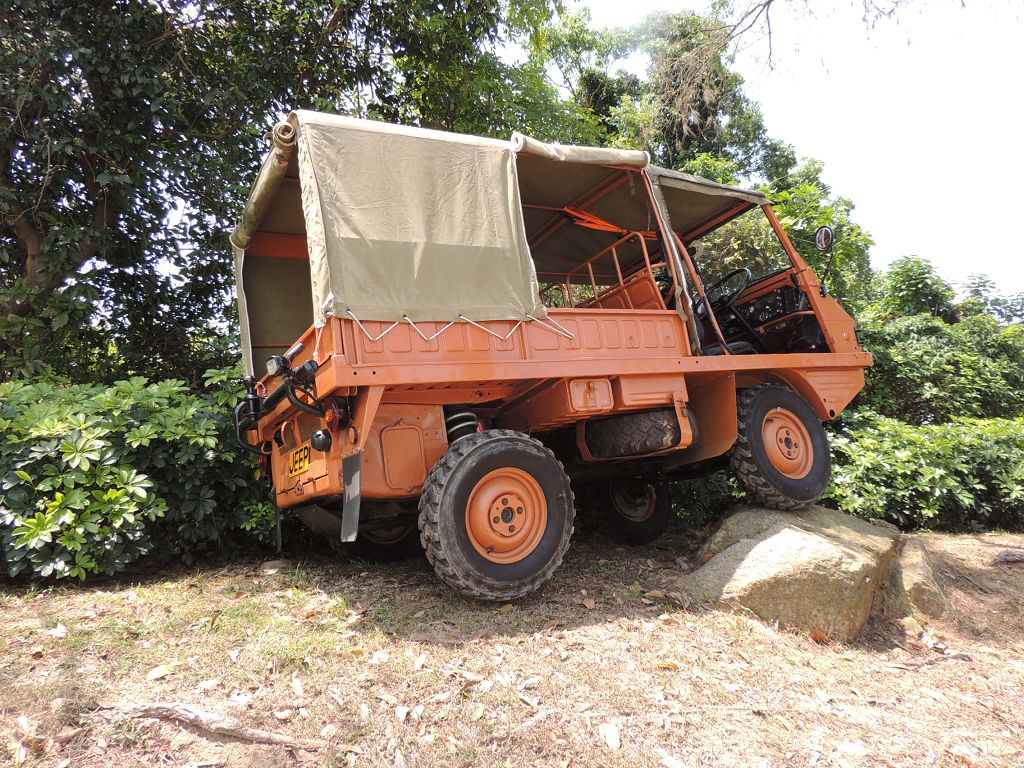

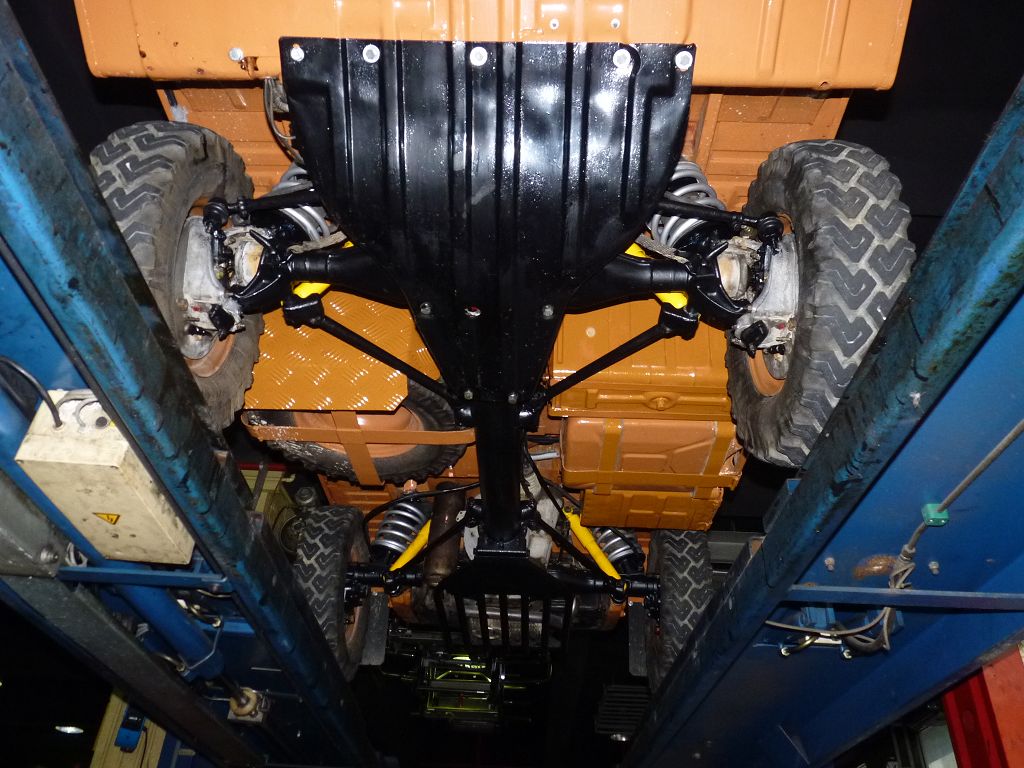

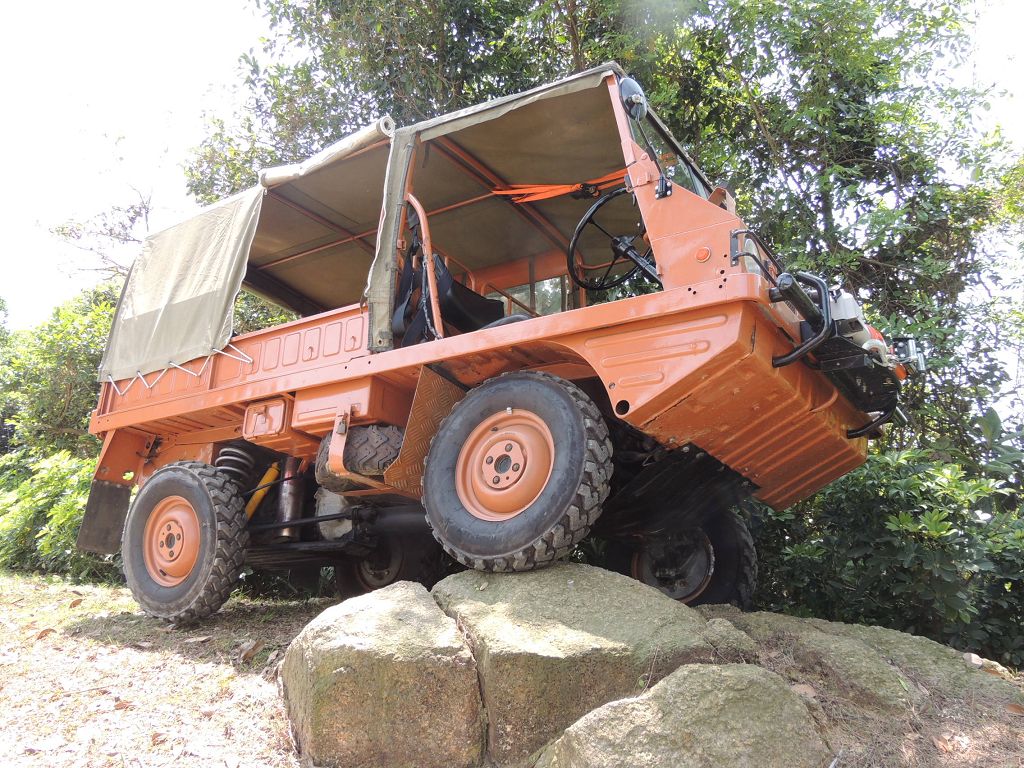

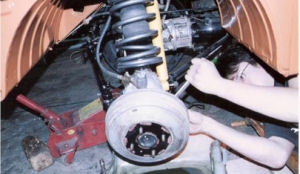

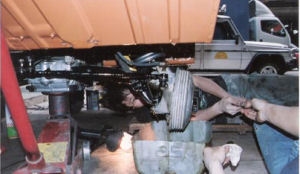

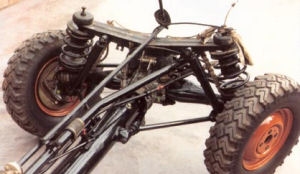

Suspension: 4 wheel independent suspension & plus hub reduction gear at each wheel
Brake: 4 wheel Drum Brake
Max speed: 79 Km/h

馬力27匹 最強BB爬山王
History:

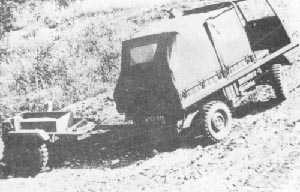

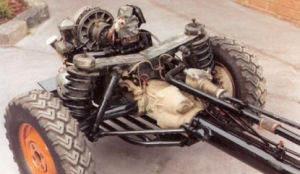

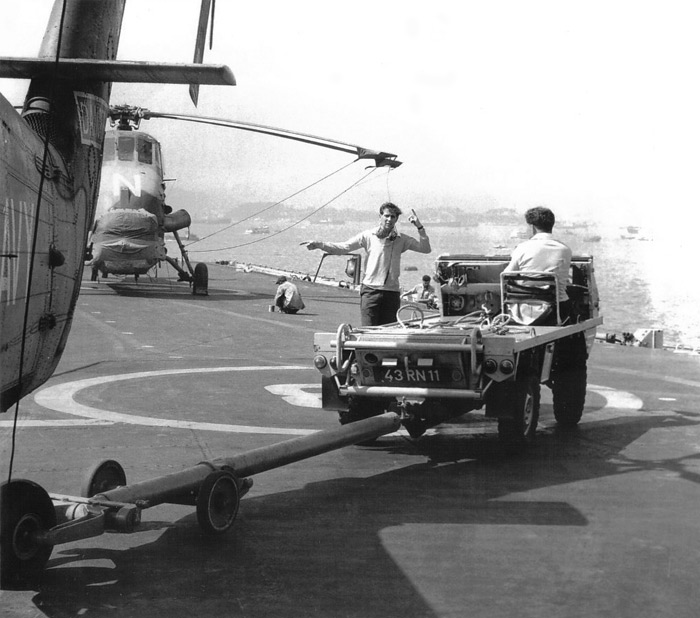

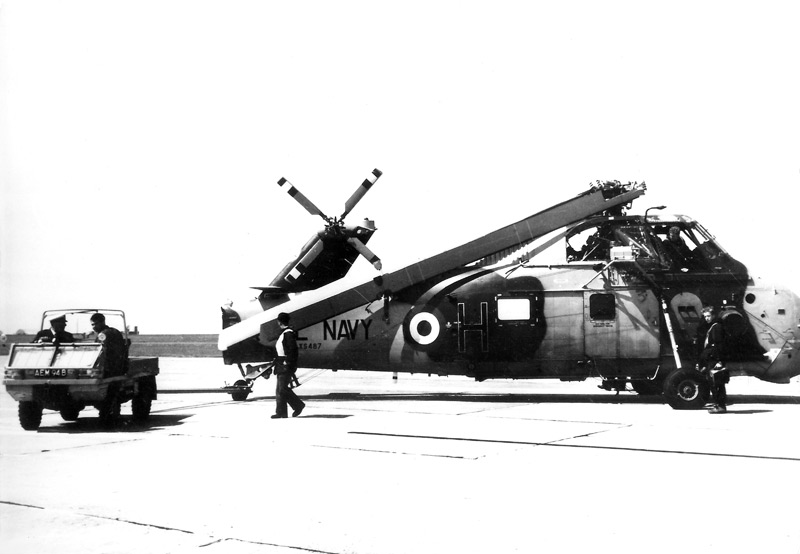

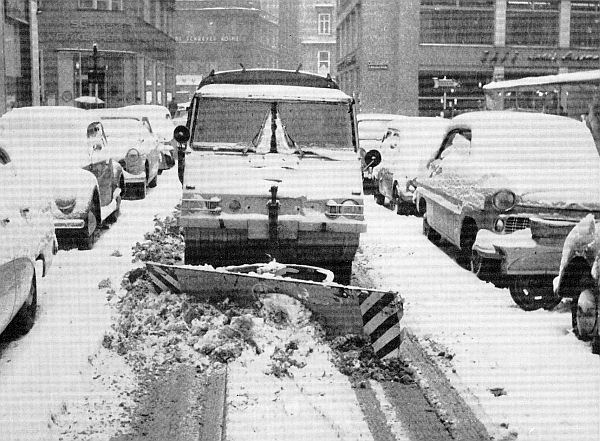

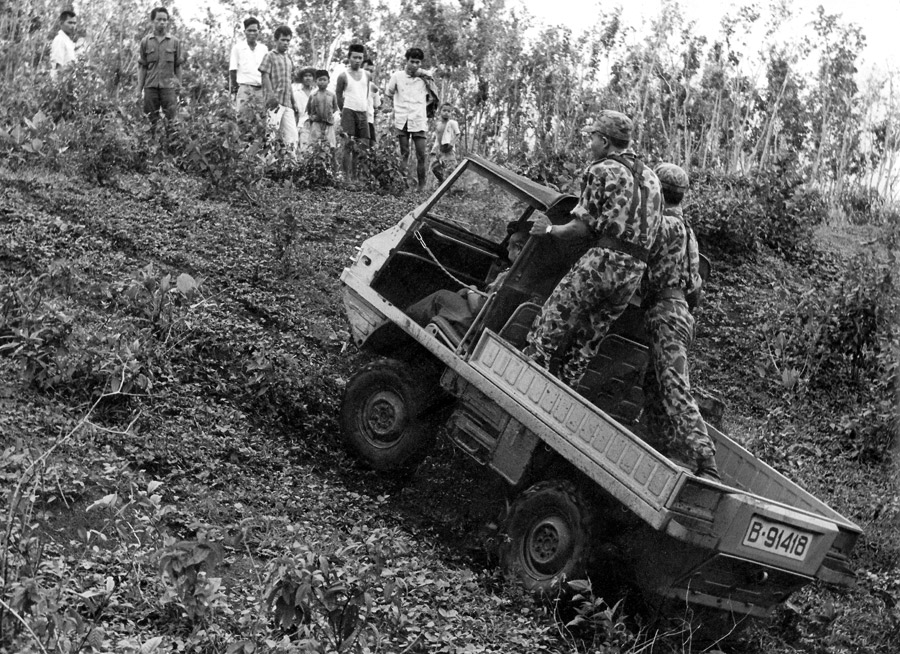

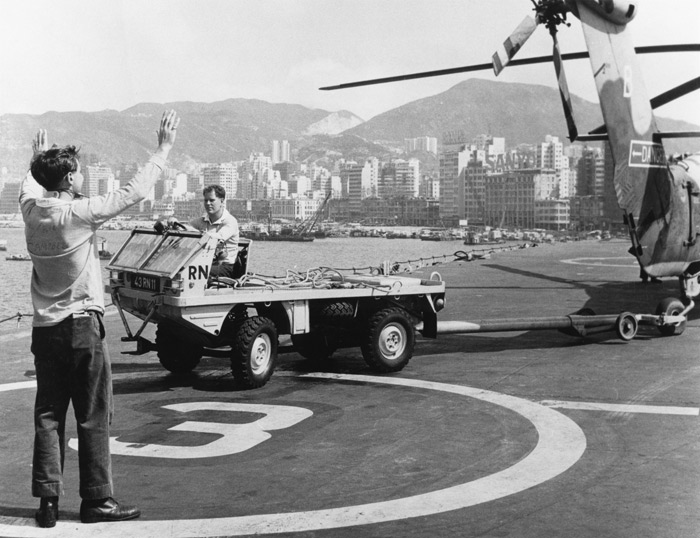

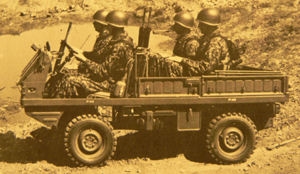

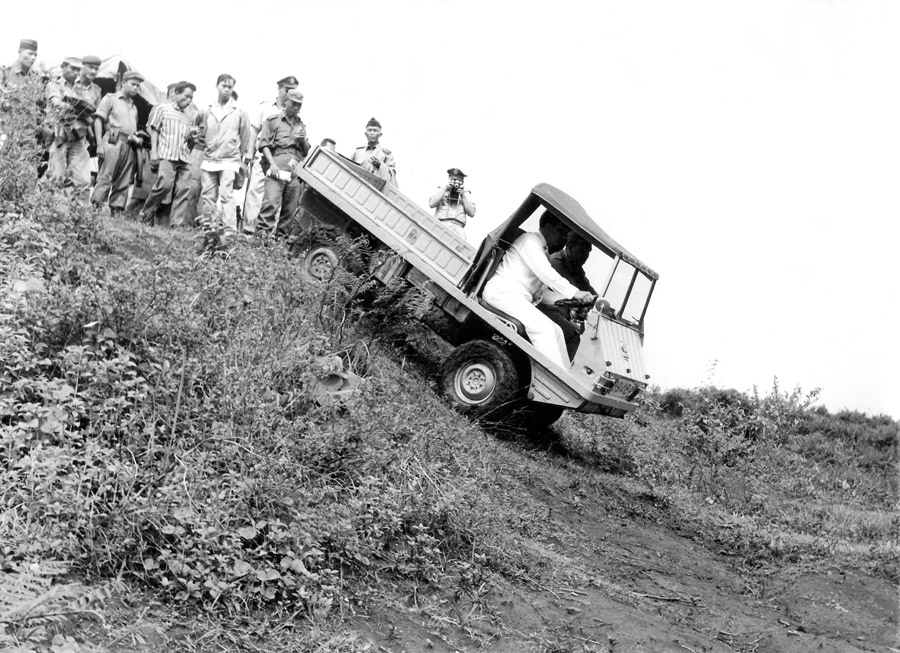

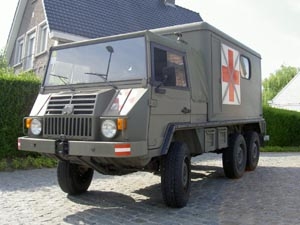

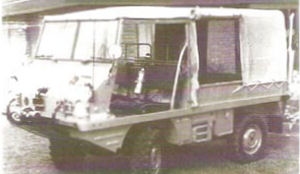

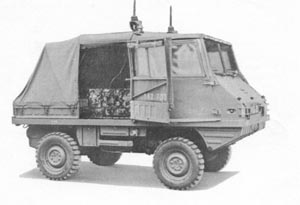

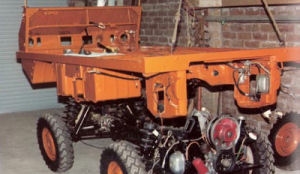

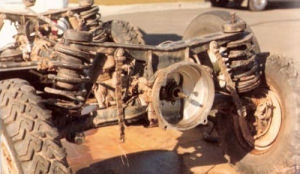

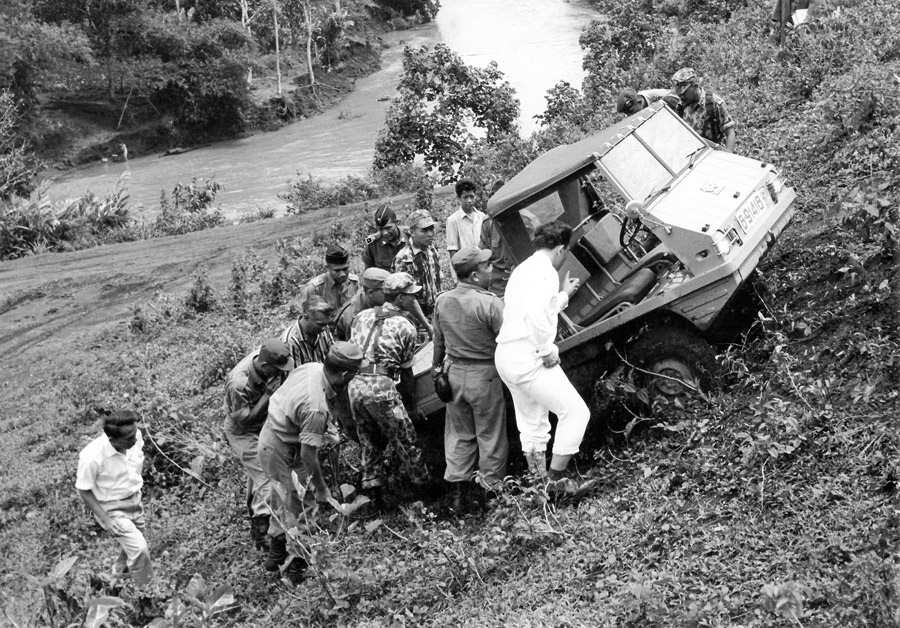

HAFLINGER one of the most success post-war small cross-country awesome performance vehicle, it is build by STEYR DAIMLER PUCH, This vehicle was designed pic1by Erich Ledwinka, Chief Designer at steyr-Daimler-Puch and son of Hans Ledwinka, the legendary Czech engineering. Hans work for steyr during the first world war & designed Tatra cars and trucks of 20s~~30s with tubular backbone chassis, ( Porsche also took this Tubular chassis to build the KdF 82e sedan/peoples car at 1938) Independent suspension all around with air cooled engine. This 700 AP at 1959 similar technical with rear mounted air cooled flat twin 2 cylinder engine to balancing the 2 man at front, forward control, tubular-backbone chassis, 4 wheel independent suspension with coil spring suspension pic1& each wheel got a reduction geat to make big Ground clearance, front & rear with 100% manual Diff lock, the basic vehicle got plat from body, pickup body, for Army to towing a Gun or carrier anti tank guided, or a ambulance, or carrier 4 man. A wide variety of optional equipment, such as a power take off Winch, to pull 1500 Kg, it is near 3 time as itself weight. or a Hdy for dozer etc equipment. In 1962, a AP703 LWB model was introduced, some with a fibre glass close cab 27.5cm longer than AP703s 2.85m/9ft 4inch Length, wheel base from 1.5 increase to 1.8m. most for fire service, with a very good for off road, the vehicle only got 645Kg & can load 555Kg, Until today no any small 4X4 can compare with this little vehicle. Austria Army,pic1 Indonesia, Itlay, Franch, Netherland, Nigeria, S.Africa, Switzerland, Sweden Army use some of them & many other service at Island fire service like HK ( 29 bought to HK .All import by HK Mercedes agent, unfortunately no one left today.) & 500 unit exported to Japan etc, in every were in the world at 60s~~70s. This small ATV extra light, build by the big heavy truck, off road truck maker Steyr in Austria at end of 50s, it is very light but heavy duty, Air transportable four seater go any where machine with PTO Winch, it is much better than US M274, MULE a lot, not only the speed, off road performance, but also on road performance. This is the only one in HK today , It is imported at 2002 from a 4X4 historic Vehicle collector Mr. Macmillan at Australia, He also got a FC101 6X6 prototype.( FC 101 with power trailer model )

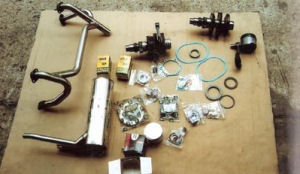

If you have any 60-70s 700 ap/703 ap parts, new or good condition used is not a problem, just email me, our email: fourwdco@yahoo.com . I need 60s 4 speed model gear box, PTO, engine, steering box, axle, suspension, diff, and also 70s 5 speed gear box, PTO, axle, engine, suspension, diff, CV join, winch, body parts, half door, soft top, LHD or RHD is not a problem. Or a complete rust vehicle or a complete chassis, LWB or SWB soft top, hard top or a 6x6 haflinger is not a problem. new or good condition used parts is not a problem, we pay the freight. Just email us.
